Can Toyal JWX customize the particle size distribution of aluminium powder?

Yes. Particle size distribution, alloy composition and surface treatment can be engineered to the customer's process, whether laser powder bed fusion, metal injection molding, press-and-sinter powder metallurgy, thermal fillers or pigment milling. Share your target D10/D50/D90 and application to receive a matched recommendation.

What is the difference between spherical and coated aluminium powder?

Spherical uncoated powder offers high flowability and packing density for 3D printing, PM and AMMC. Coated or surface-treated aluminium powder adds a functional surface layer that improves compatibility with polymer matrices such as silicone or epoxy and improves handling behaviour in thermal filler formulations.

How is aluminium powder shipped internationally?

Aluminium powder is a regulated dangerous good. Uncoated aluminium powder is typically classified as UN1396 (Class 4.3) and coated aluminium powder as UN1309 (Class 4.1). It is shipped in sealed, inert-protected packaging with Safety Data Sheets and compliant dangerous-goods documentation.

Which quality certifications does the factory hold?

The company is certified to ISO 9001:2015 Quality Management System and ISO 14001:2015 Environmental Management System, and holds a Safe Production License for metal powder manufacturing.

What is Toyal JWX's relationship with Toyo Aluminium?

Founded in 1997, Hunan Ningxiang JiWeiXin Metal Powder Co., Ltd. was jointly acquired in December 2009 by Toyo Aluminium K.K. Group and Shanghai Matsuo Co., Ltd., bringing Japanese process discipline and quality control to its aluminium powder production.

Famous Uncoated Aluminum powder for thermal management products Supplier, TOYAL

1 / 2

Famous Uncoated Aluminum powder for thermal management products Supplier, TOYAL

TJWX obtains more than twenty years of experience for producing spherical aluminum powder, which enables goods stable and safely produced in the plant.

TJWX produced spherical aluminum powder with uncoated type; It is silver gray, and it is made by aluminum ingot(Al>99.8%) via melting by furnace under high temperature and high pressure, and the material produced by aluminum powder became got light weight. It would also be a good choice because of its good compatibility with loading carrier and low thermal impedance.

Send Inquiry

Product Description

After atomization, the spherical aluminum powder features a thick layer of alumina on its surface to keep high active aluminum inside.

It is collected through a sealing atomization, classification, blending, and sieving process. Controlled by strict production methods to maintain particle size distribution and consistent appearance. Custom particle size adjustment plans are available per customer demand.

Need more information, pls e-mail [email protected].

Physical Properties

Shape: Spherical

Melting Point: 660℃

Density: 2.699g/cm³

Odor: Odorless

Prohibitions: Water, Acid, Alkali, Halogen; Avoid dust spraying in the air and ensure anti-static precautions.

Product Particle Sizes

Available particle size range options:

1~2µm 5~6µm 8~10µm 9~11µm 13~15µm 15~17µm 19~21µm 26~29µm 30~33µm 40~50µm 60~70µm 100µm

Packaging & Logistics

Packaging Conditions: 25Kg/Iron drum, 160Kg/Iron drum, 200Kg/Iron drum with pallet
Volume: 12.8 tons, 16 tons, 18 tons (Per 20FCL)
Transportation: By road, by air or by sea
Capacity: 8,000 tons annually
Delivery Time: 2~3 months including EL application and inspection

Compliance & Quality Assurance

Quality Control System: GB/T19001:2016 / ISO9001:2015

Environment Control System: GB/T 24001:2016 / ISO14001:2015

Testing Equipment & Methods:

ICP for testing incoming impurities of aluminum ingot
Laser diffraction testing machine for testing particle size
Moisture tester for testing water content
Oxygen content machine for oxygen volume

Uncoated Aluminum Powder for Aluminum Pigment Powder (1)

Uncoated Aluminum Powder for Aluminum Pigment Powder (2)

Applications

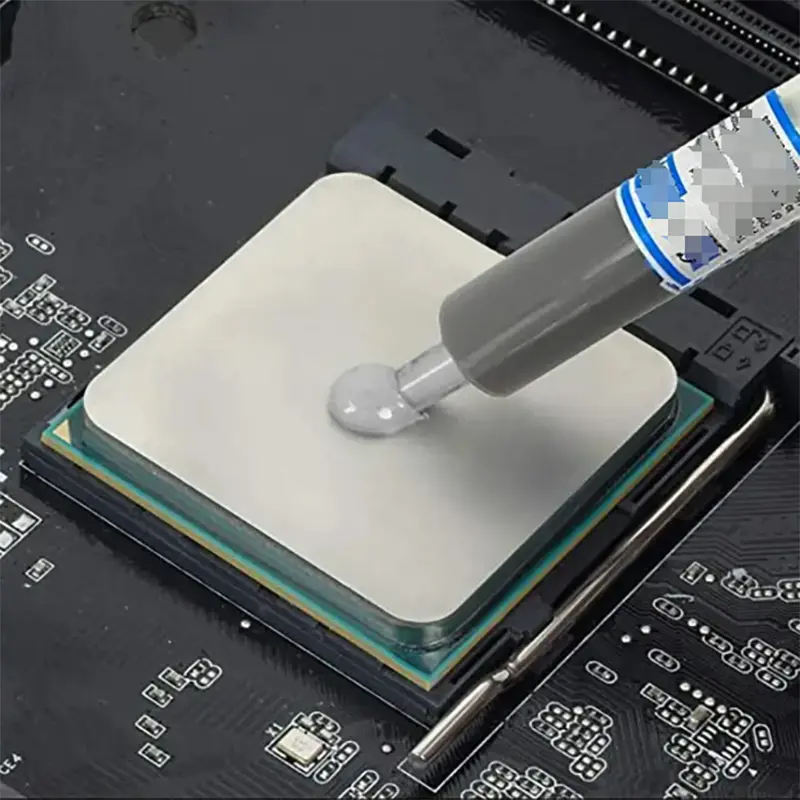

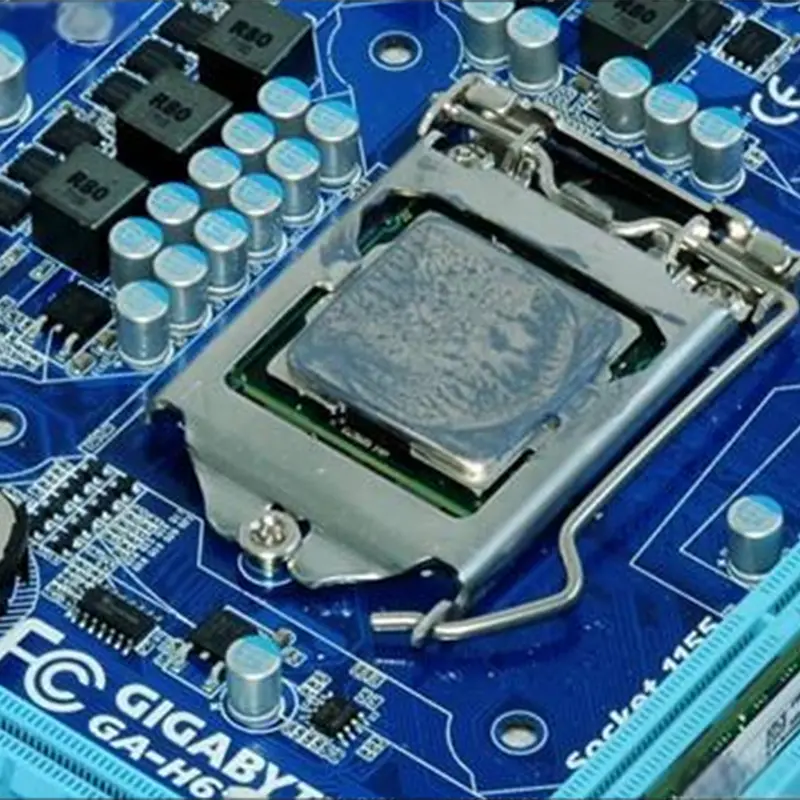

Designed for thermal management materials, including:

Thermal grease
Thermal filler
Thermal pad, etc.

Target Fields

Industrial applications
Automobile industry
Electronics (Computer, Mobile, laptop, etc.)

Frequently Asked Questions

What are the main application fields for this Spherical Aluminum Powder?

It is primarily used for thermal management materials such as thermal grease, thermal fillers, and thermal pads across industrial, automobile, and electronic fields (computers, mobile phones, laptops, etc.).

What particle sizes are available for this product?

Available particle sizes include 1~2µm, 5~6µm, 8~10µm, 9~11µm, 13~15µm, 15~17µm, 19~21µm, 26~29µm, 30~33µm, 40~50µm, 60~70µm, and 100µm. Custom particle size adjustment plans are also available upon customer request.

What are the packaging and transportation options?

Packaging options include 25Kg/Iron drum, 160Kg/Iron drum, and 200Kg/Iron drum with pallet. Volume capacity per 20FCL is 12.8 tons, 16 tons, or 18 tons. Transportation can be arranged by road, air, or sea.

Which quality and environmental standards does this product comply with?

The manufacturing process complies with the Quality Control System GB/T19001:2016 / ISO9001:2015 and the Environment Control System GB/T 24001:2016 / ISO14001:2015.

How is product quality tested and guaranteed?

Quality assurance involves ICP for testing incoming impurities of aluminum ingot, a laser diffraction testing machine for particle size, a moisture tester for water content, and an oxygen content machine for oxygen volume.

What is the annual production capacity and expected delivery time?

The annual production capacity is 8,000 tons. The standard delivery time is 2 to 3 months, which includes EL application and necessary inspections.
